Description

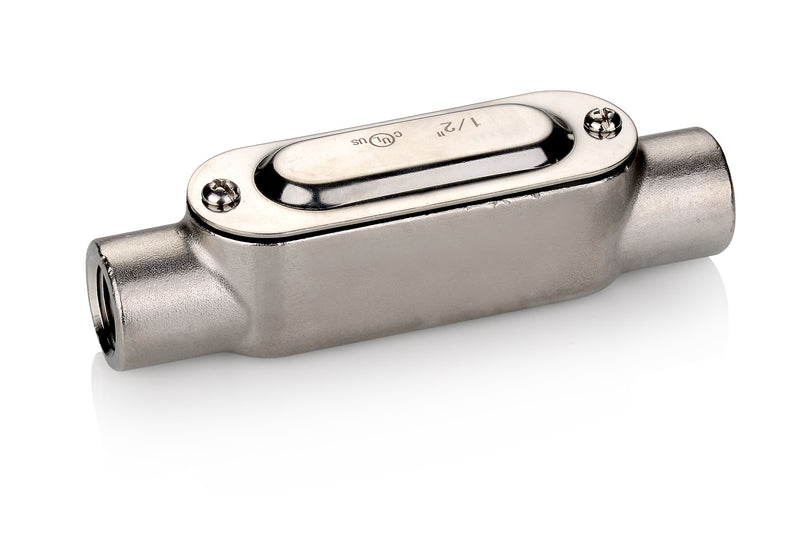

Stainless Steel Conduit Body, Type C for Rigid/IMC with Cover & Gasket
TYPE: C, Threaded for RIGID/IMC
MATERIAL: Stainless Steel 316 Body & Cover, Neoprene Gasket
FINISH: Polished
APPLICATIONS:
- Provides access inside raceways for wire pulling, splicing, inspection, and maintenance.
- For the strictest sanitary requirements, server corrosive applications and high moisture environments:
- Chemical Plants
- Food & Beverage
- Marine & Coastal
- Petrochemical Operations
- Pharmaceuticals & Cosmetics
- Pulp & Paper Mills
- Refining & Extraction Sites
- Water & Wastewater Treatment
FEATURES:
- Suitable for use in wet locations.
- Suitable for use in cement.
- NPT tapered hubs.
COMPLIANCE:
UL Standard: 514A
CSA Standard 22.2 No. 18.1-04
IP: NEMA3R
PRODUCT INFORMATION:
NOMINAL DIMENSIONS (inches):
NOTE: To order, add -316 to end of part number for SS316.
